ARC 257 Architectural Design II

Form and Function

PROJECT 1

This project highlights the need to balance visual appeal with practical function when designing structures that are both efficient and attractive. The task involved redesigning an existing bridge to include a 30' × 40' opening for water traffic, consideration of both structural performance and overall design.

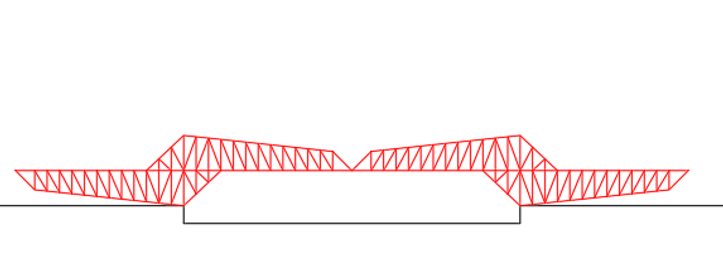

BRIDGE SPAN PROTOTYPE

Name: Tokyo Gate Bridge

Type: Cantilever Bridge​

Location: Koto City, Japan


Name: Turnpike Bridge​

​Type: Arch Bridge​

Location: Bristol Township, Pennsylvania


Name: Quebec Bridge

Type: Cantilever Bridge

Location: Lawrence River, Canada


MOVEMENT ANALOGIES

We were tasked with identifying three household items that incorporate two or more mechanical hinges and selecting three to design bridge-opening. I used an eyelash curler, an umbrella, and ice-cream scooper. Each item was then recreated as a 3D model, and its mechanical functions were layout through diagrams. Helping to understand how each mechanism operates before applying those mechanism to the development of the bridges.

UMBRELLA

Untitled design.png

PRELIMINARY 3x3 PROTOTYPE TABLE

By combining my three conceptual spans with the three selected household mechanisms, I created a 3×3 diagram that results in nine distinct prototype configurations.


SELECTED PROTOTYPE


MECHANISM MOVEMENT

3D BRIDGE PROCESS

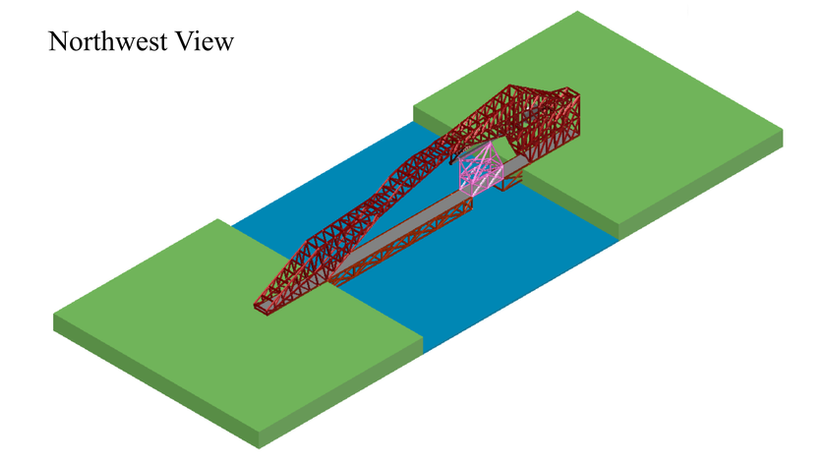

ISOMETRIC VIEWS

3D ROTATING VIEWS

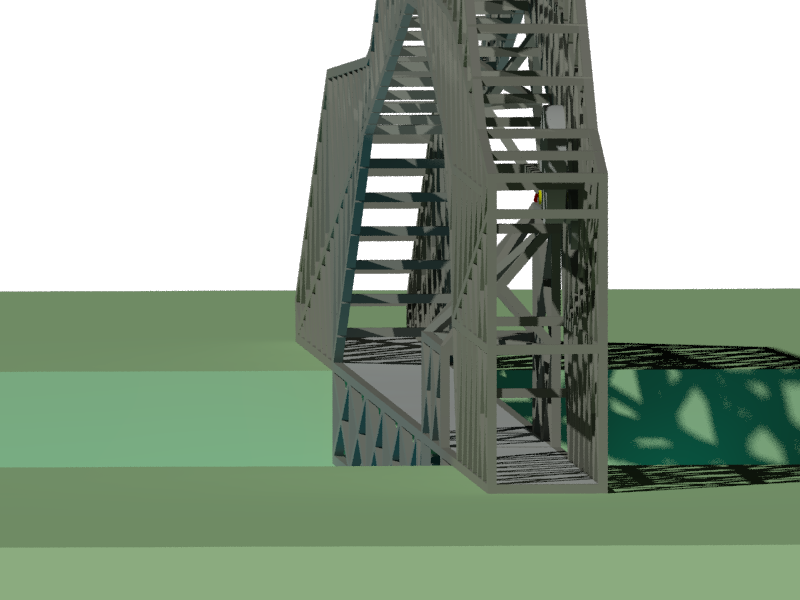

3-D View Of  The Bridge

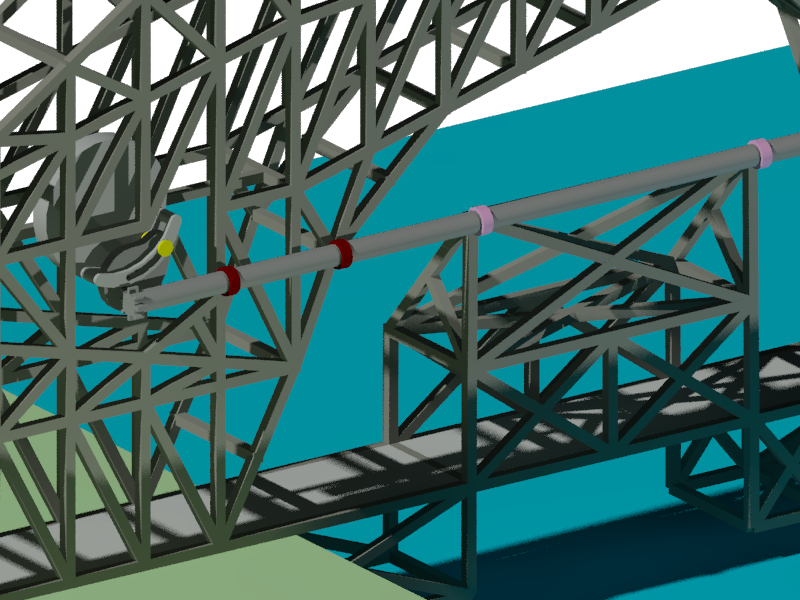

3-D View Of  The Mechanism

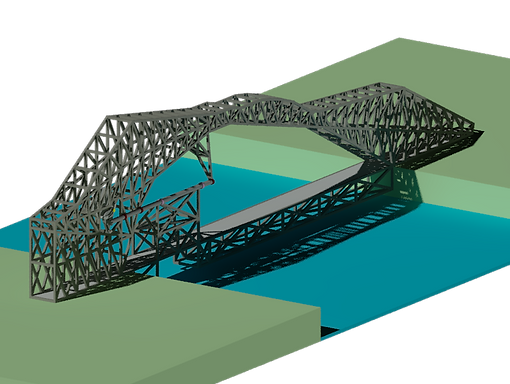

FINAL DESIGN RENDERINGS

render 2.png
Render 1.png
Render 4.png
Render 3.png
Render 2.png
Render 1.png
